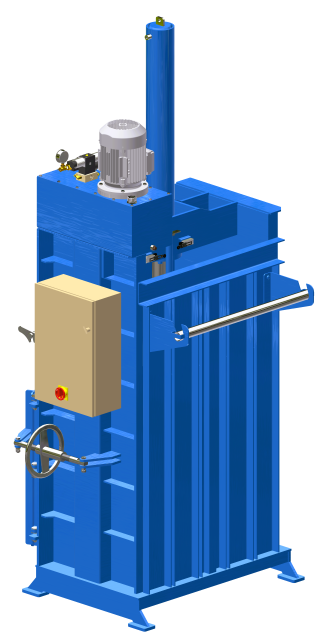

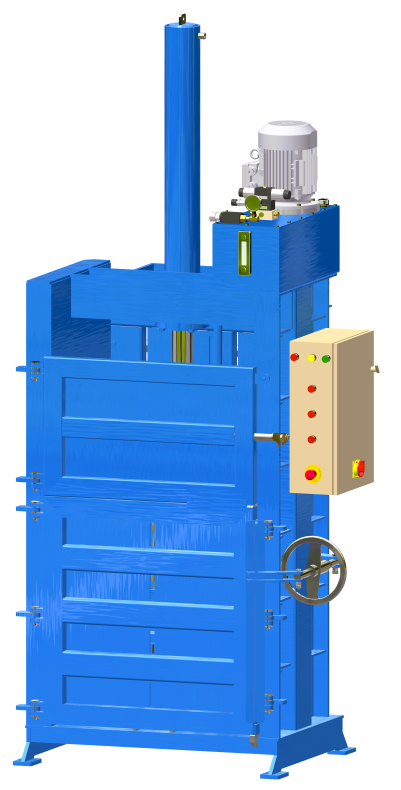

Vertical Baler model VB-25
The VB-25 is a highly flexible machine and can be used in many different situations e.g. larger retail shops, stores and different industries.
1Aluminum cans, PET bottles, Foams, plastic, Shrink Wrap etc.
This baler has a wide filling opening for handling larger boxes.

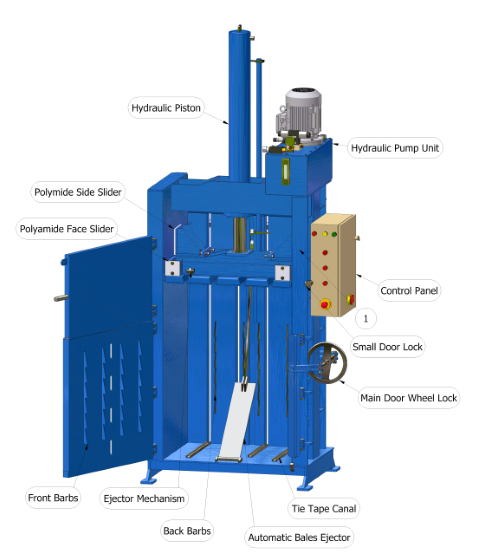

The chamber is provided with rows of barbs, which keep the waste material down, even very expandable materials.
The pressing Platten is supplied with side and face polyamide sliders.
The Polyamide sliders facilitate the course of the platen and stabilize it during pression which prevent the damage of the hydraulic piston.
Side polyamide sliders are supplied with adjustable mechanisms; it can easily adjust the emptiness between the polyamide and the sides of the baler.
The VB-25 is easy to operate, and the traditional construction ensures low maintenance costs.
It is simple and versatile oil dynamic packing presses power unit in a pressed steel housing.
It is made of resistance painted steel material.
They are completely portable and require no installation.
The volume reduction is about 80 - 90%.

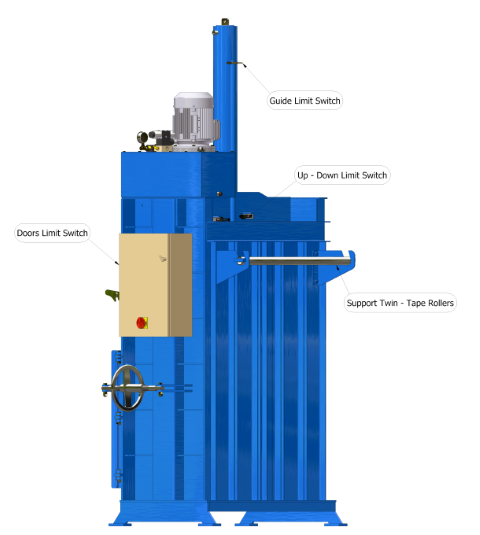

It is supplied with a control panel; an emergency stops button, an oil pressure gage and an internal relief valve sub plate circuit.
Electric items and hydraulic components are made by European standards.
The machine is made in accordance with E.C rules.
Technical Data
• Pressing Force: 20-25 Tons
• Loading method: Manual
• Feeding opening mm: 850W x 550H.
• Compression chamber mm: 850 W x 650D x1370H
• Bale dimensions mm: 850W x 650D x 1000H

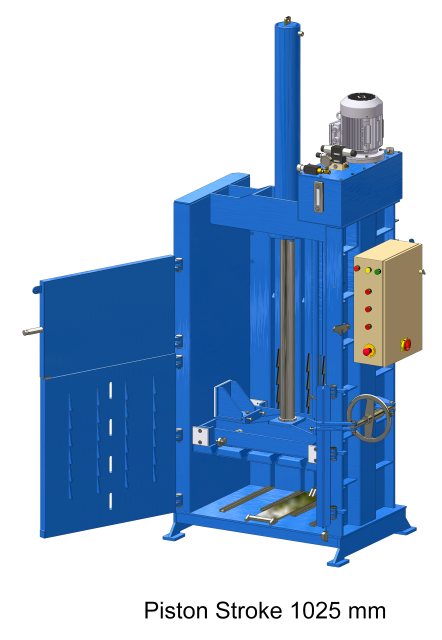

• Cylinder: Bore 120mm, Rod 80mm, Stroke 1025mm.
• Cycle time: 45 Sec. Approx.
• Automatic Bale Ejector
• Bale Tying 4-6 Slots, Wire or polyethylene twine or tape.
• Support rollers twine or tape
• Bale weight up to 150-300 Kg
• Output: 3-5 bales per hour
• Three phases electric motor: 5.5 HP
• Voltage / Frequency: 380/660V, 50 / 60 Hz
• Overall dimensions cm: 110D x118W x295/H
• Total Machine Weight: 1125 Kg Approx
